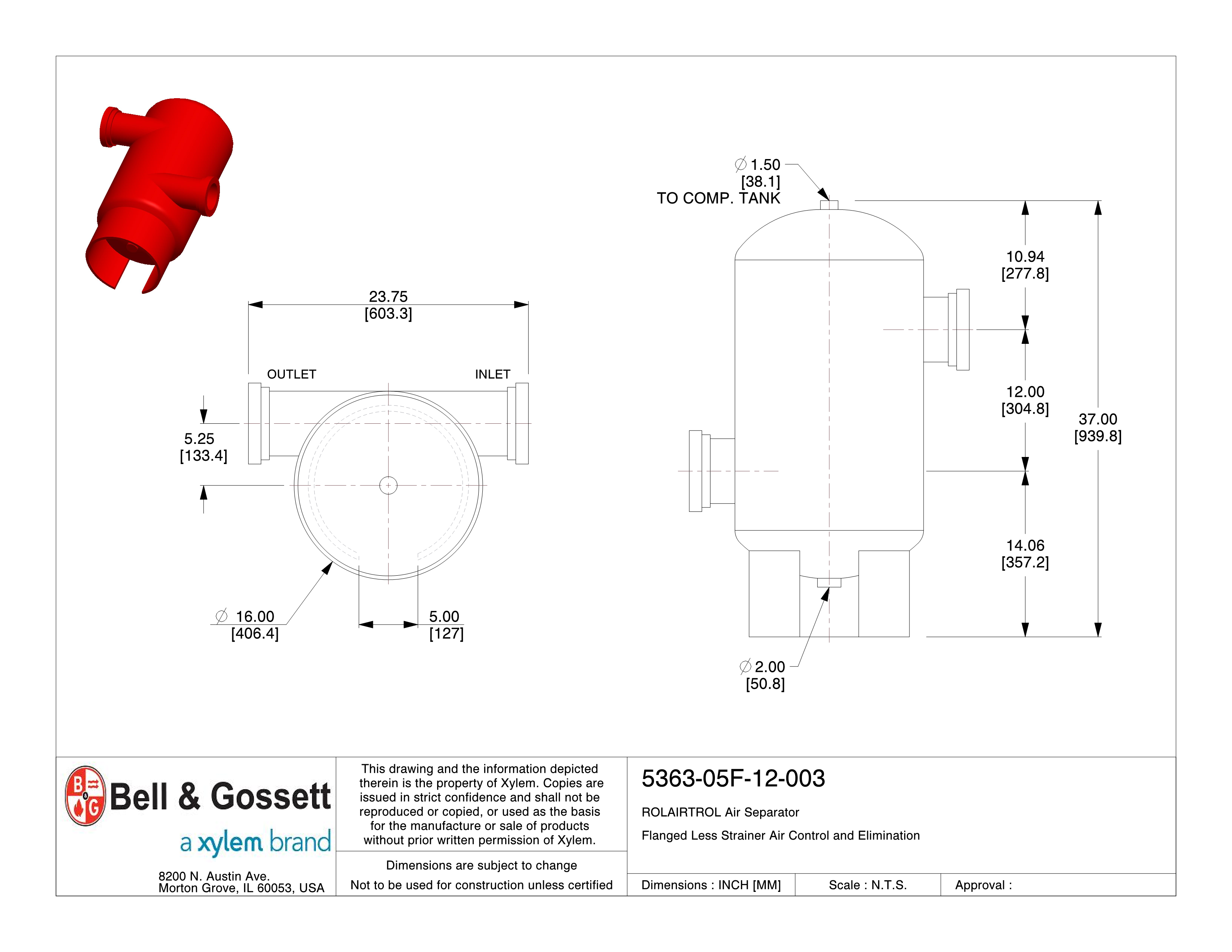

Rolairtrol Air Separator 5" Flanged w/o Strainer
Model: 5363-05F-12-003
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Air & Sediment Separators |
| Product Series | The ROLAIRTROL Air Separator |
| Model | RL-5F |
| Description | ROLAIRTROL Air Separator |
| Submittal ID | A-326.8F |
| Connection Size | 5 |
| Connection Type | Flanged |
| A-Dim | 37 (940) |
| B-Diameter | 12 (305) |
| C-Dim | 14-1/16 (357) |
| D-Dim | 10-15/16 (278) |
| E-Diameter | 16 (406) |
| F-Dim | 23-3/4 (603) |
| G-Dim | 5-1/4 (133) |
| H-Dia | 1-1/2 (38) |
| J-Diameter | 2 (51) |
| L-Dim | 18-1/2 (470) |
| M-Diameter | 19-3/8 (492) |
| N-Diameter | 2 (51) |
| Cv Rating (cv) | 580 |
| Weight of Brackets (lb) | 9 (4) |
| Approx. Vol Gallons (m3) | 25 (95) |
| Strainer | No |
| Support Brackets | No |
| CAD model unit system | inch/pound |
| Approx.Shpg. Weight (lbs(kg)) | 205 (93) |
| Approx.Flooded Weight (lbs(kg)) | 414 (188) |
