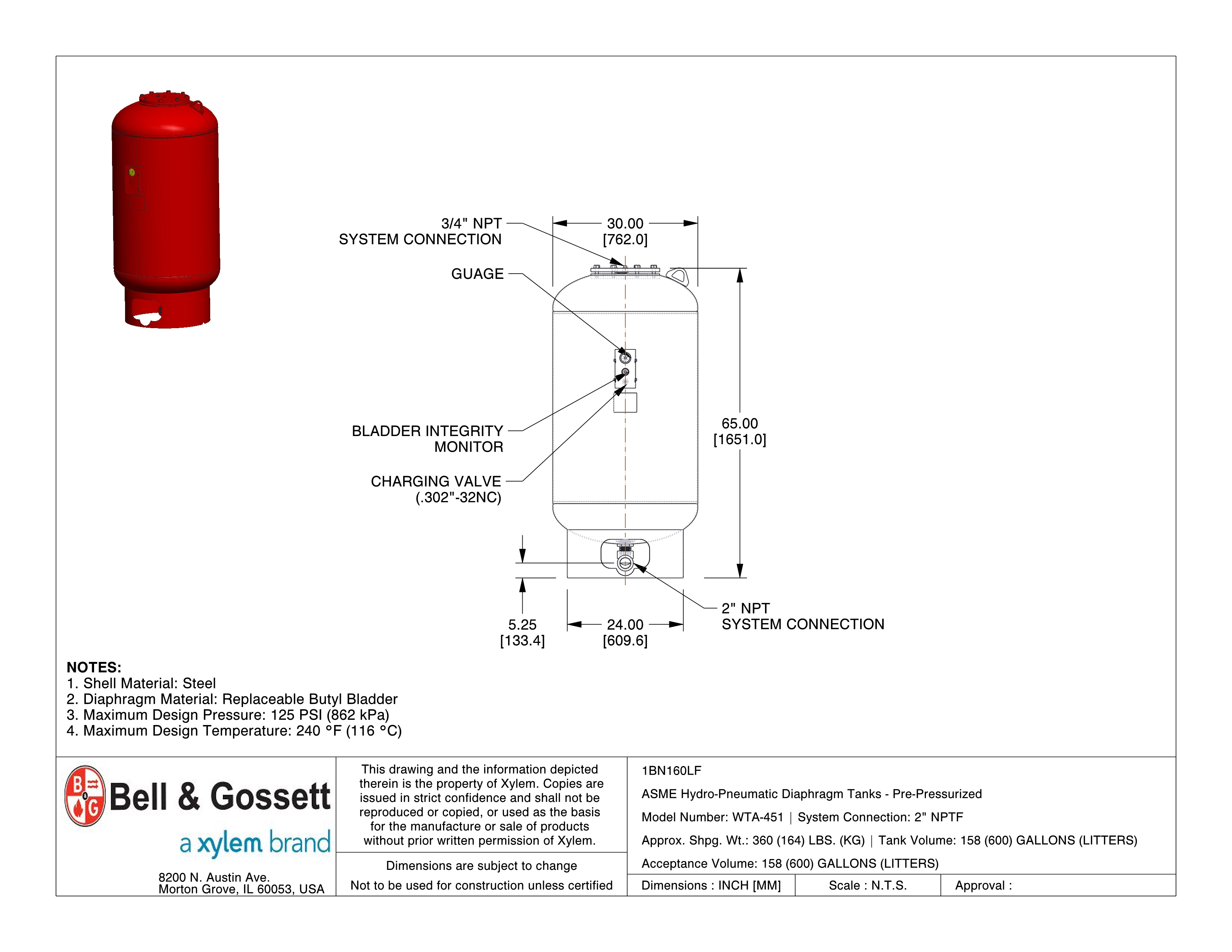

WTA-451 Well Water Bladder Tank
Model: 1BN160LF
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Expansion/Compression Tanks |
| Product Series | Series "WTA" (ASME) Potable Well Water Diaphragm/Expansion Tanks |
| Description | WTA-451 Well Water Diaphragm Tank |
| Submittal ID | A-315D |
| Part Number | 1BN160LF |
| Volume Gallons Tank (Gal (L)) | 158 (600) |
| Volume Gallons Acceptance (Gal (L)) | 158 (600) |
| A-Diameter | 30 (762) |
| C-Dim | 3-1/2 (89) |
| C-Height | 73-1/4 (1861) |
| D-Dim | 5-1/2 (140) |
| E-Dim | 24 (610) |
| System Connection | 2" NPTF |
| Approx. Shpg Wt. (lb) | 513 (233) |
| CAD model unit system | inch/pound |
