CRSN Air & Sediment Separator, Standard Velocity, Non-Removable Coalescing Medium
Model: 5333-25F-15-002
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Air & Sediment Separators |
| Product Series | CRSN Combo Separator, Standard Velocity, Non-Removable Head |
| Model | CRSN-2-1/2F |
| Description | STANDARD - NON-REMOVABLE HEAD |
| Submittal ID | A-326-15E |
| Capacity Gpm (m3/hr) | 96 (22) |
| Connection Size | 2.5 |
| Connection Type | Flanged |

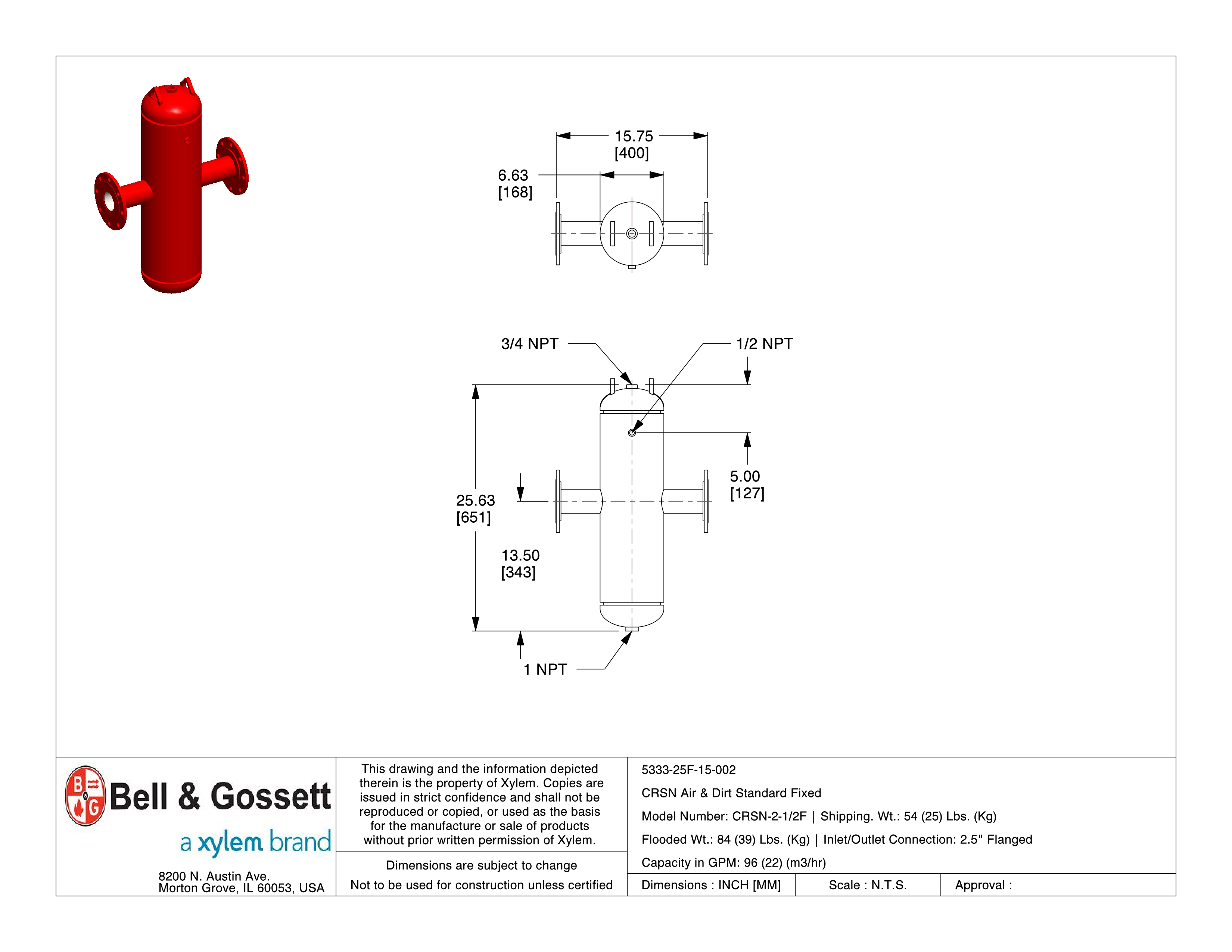

| A-Dim | 25.63 (651) |
| B-Dim | 13.50 (343) |
| Connection | 2.5" Flanged |
| C-Dim | 15.75 (400) |
| E-Dim | 6.63 (168) |
| F-Dim | 5.00 (127) |
| G-Dim | 3/4" NPT |
| H-Dim | 1/2" NPT |
| J-Dim | 1" NPT |
| Charging Valve | 116 |
| Separator Type | Air/Sediment Combo |
| Removable Coalescing Media | No |
| Velocity Design | Standard Velocity |
| CAD model unit system | inch/pound |
| Approx.Shpg. Weight (lbs(kg)) | 54 (25) |
| Approx.Flooded Weight (lbs(kg)) | 84 (39) |
