CRSN Air & Sediment Separator, High Velocity, Non-Removable Coalescing Medium
Model: 5335-12F-15-002
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Air & Sediment Separators |
| Product Series | CRSN-HV Combo Separator, High Velocity, Non-Removable Head |
| Model | CRSN-12F-HV |
| Description | HIGH VELOCITY - NON-REMOVABLE HEAD |
| Submittal ID | A-326-17C |
| Capacity Gpm (m3/hr) | 3,500 (795) |
| Connection Size | 12 |
| Connection Type | Flanged |

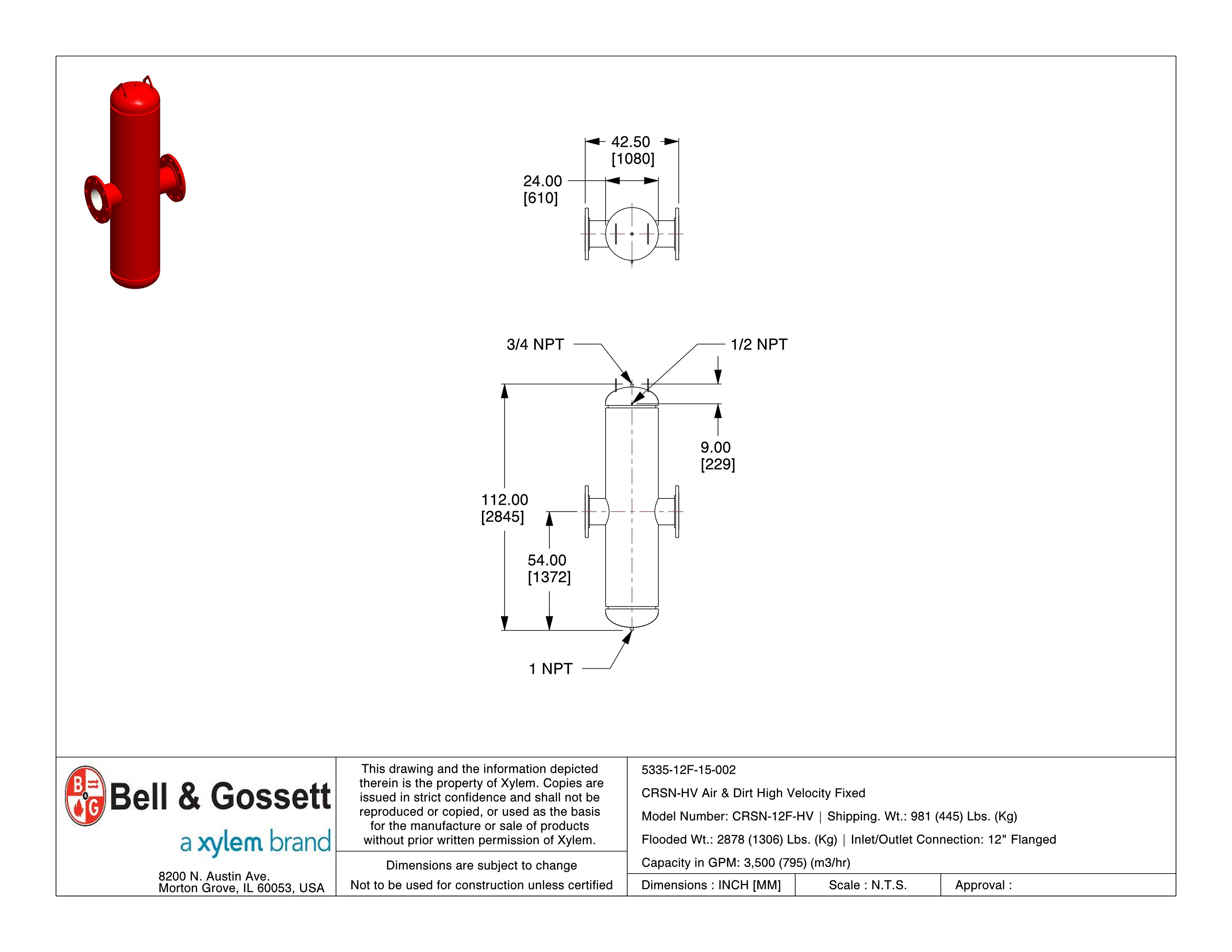

| A-Dim | 112.00 (2845) |
| B-Dim | 54.00 (1372) |
| Connection | 12" Flanged |
| C-Dim | 42.50 (1080) |
| E-Dim | 24.00 (610) |
| F-Dim | 9.00 (229) |
| G-Dim | 3/4" NPT |
| H-Dim | 1/2" NPT |
| J-Dim | 1" NPT |
| Charging Valve | 2,000 |
| Separator Type | Air/Sediment Combo |
| Removable Coalescing Media | No |
| Velocity Design | Standard Velocity |
| CAD model unit system | inch/pound |
| Approx.Shpg. Weight (lbs(kg)) | 981 (445) |
| Approx.Flooded Weight (lbs(kg)) | 2878 (1306) |
