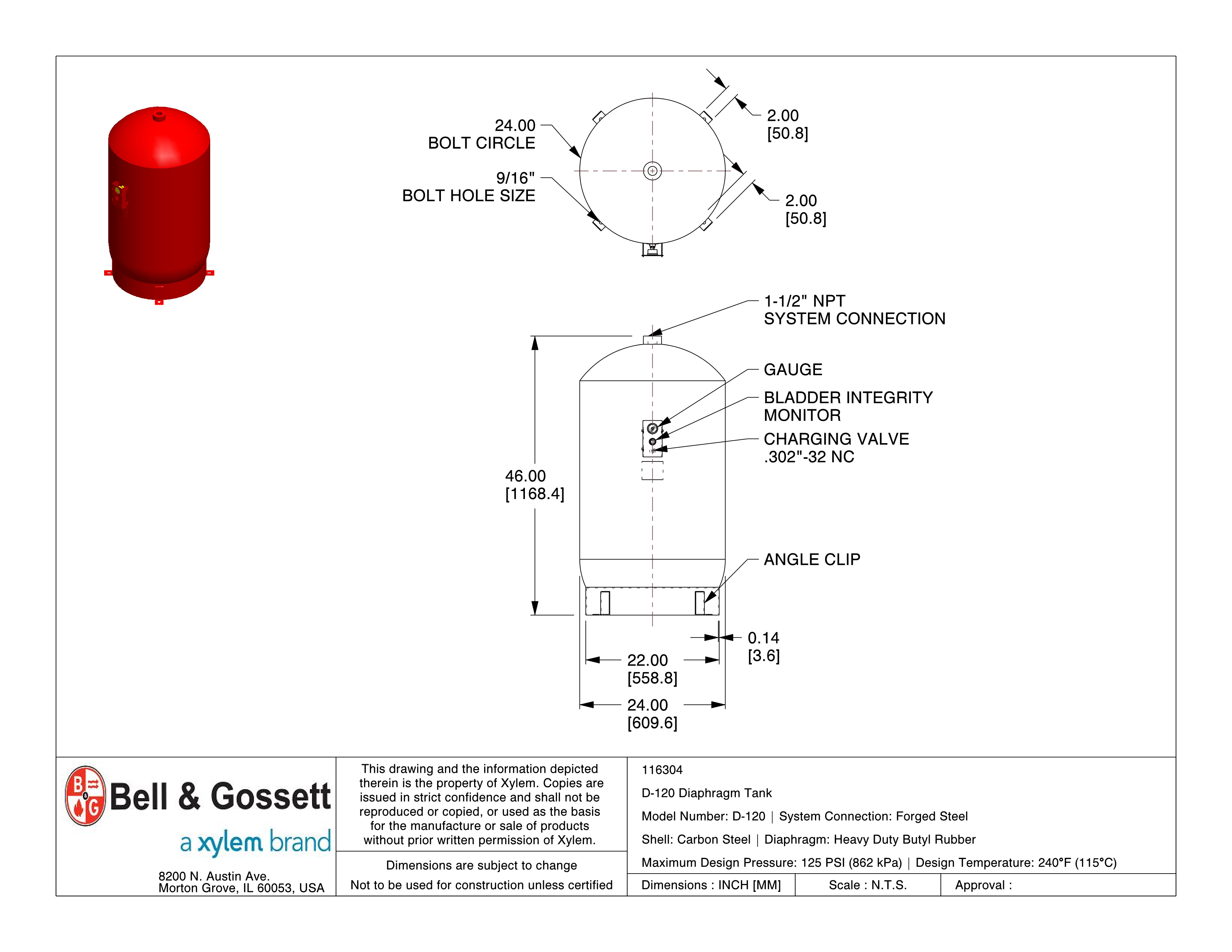

D120 Diaphragm Tank
Model: 116304
Product Details
| Documentation | |
| AutoCAD / AutoCAD MEP support |  |
| Download Revit File | |
| Contact CAD Support | |
| Adobe 3D PDF help | |
| Product Section | Air Control |
| Product Subsection | Expansion/Compression Tanks |
| Product Series | Series "D" (ASME) Pressurized Expansion Tanks |
| Description | D120 Diaphragm Tank |
| Submittal ID | A-346H |
| Part Number | 116304 |
| Volume Gallons Tank (Gal (L)) | 70 (265) |
| Volume Gallons Acceptance (Gal (L)) | 56.5 (214) |
| A-Diameter | 24 (610) |
| B-Dim | 46 (1,168) |
| C-System Connection | 1-1/2 |
| D-Skirt OD | 22 (559) |
| E-Charging Valve | .302"-32 NC |
| F-Dim | 0.14 (4) |
| G-Dim | 9/16 (14) |
| H-Dim | 24 (610) |
| J-Dim | 2 (51) |
| L-Dim | 2 (51) |
| CAD model unit system | inch/pound |
| Approx.Shpg. Weight (lbs(kg)) | 259 (117) |
| Approx.Flooded Weight (lbs(kg)) | 842 (382) |
| Working Pressure | 125 PSI |
