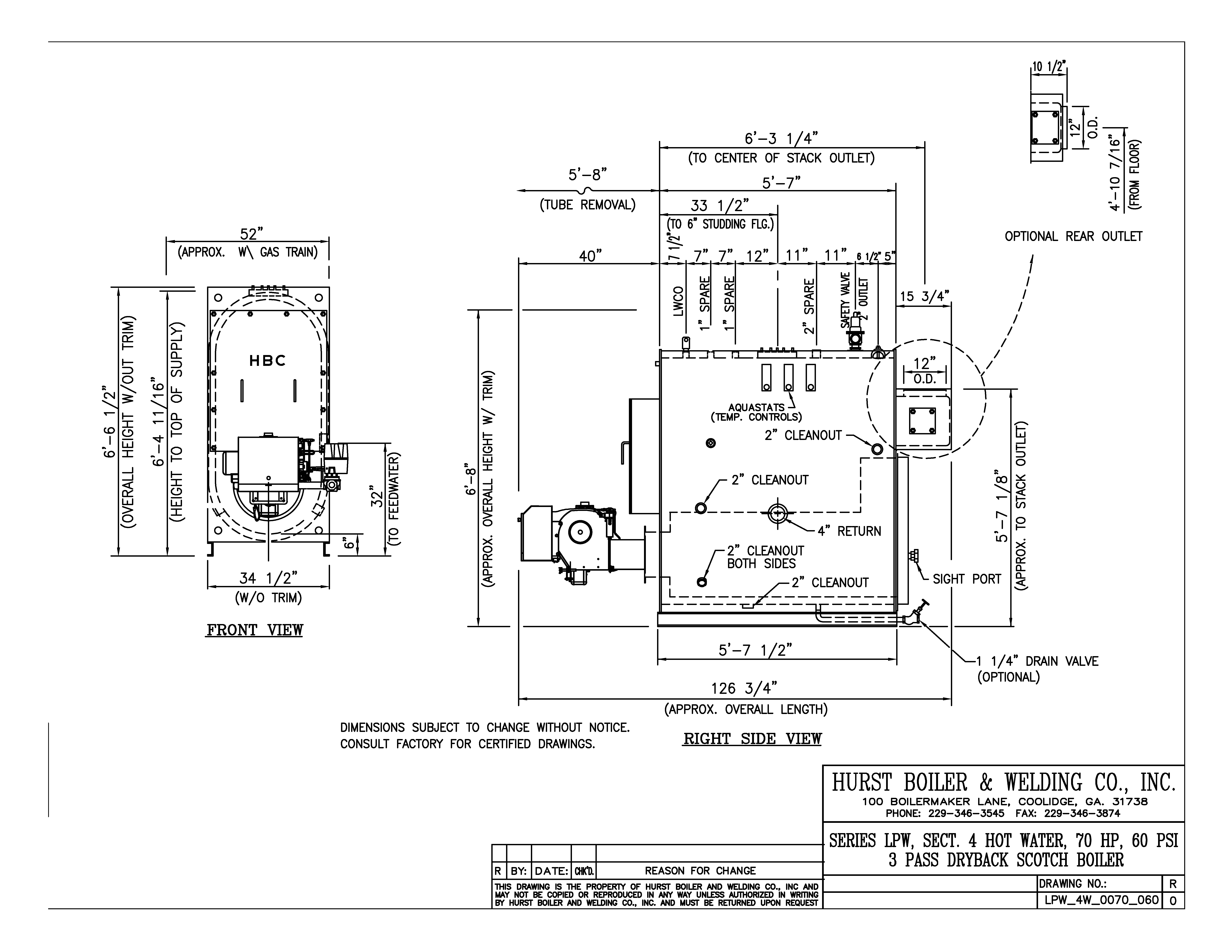

View and download select CAD files, 3D drawings and Revit models of Hurst Boiler Models.
Dimensions subject to change without notice. Certified drawings available upon request.
Do not use for construction.
| Request Quote | Quantity |
LPW Series Scotch Marine Boiler 60 PSI
| Boiler Type | Water |
| PSI | 60 |
| Boiler Horsepower | 70 |
| Heating Surface (sq ft) | 284 |
| Gross Output (MBH) | 2,343 |
| Firing Rate Gas (1,000 BTU/CF) | 2,940.0 |
| Firing Rate Oil #2 (140,000 BTU) | 21.0 |

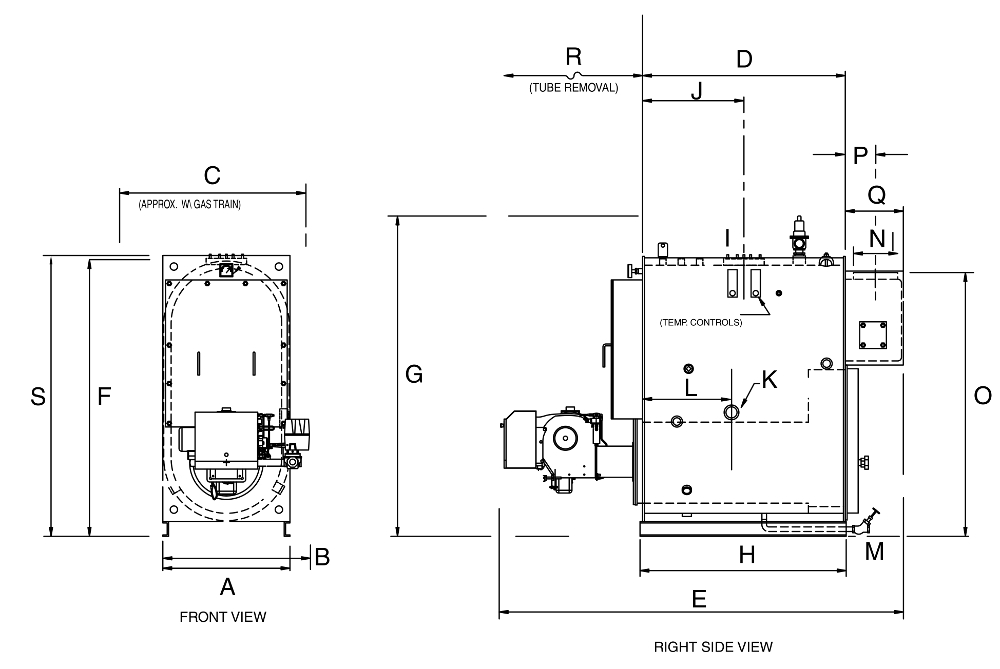

| (N) Stack Outside Dia. (in) | 12 |
| (A) Width without Trim (in) | 34.500 |
| (B) Width with Trim (in) | 42.00 |
| (F) Supply Height (in) | 76.625 |
| (J) Supply Location (in) | 33.5000 |
| (L) Return Location (in) | 32.000 |
| (C) Width With Gas Train (in) | 52 |
| (D) Boiler Length (in) | 67 |
| (E) Overall Length (in) | 123 |
| (G) Height With Trim (in) | 88.00 |
| (H) Length Of Skid (in) | 67.5 |
| (I) Supply Size (in) | 6 |
| (K) Return Size (in) | 4.0 |
| (M) Boiler Drain Size (in) | 1.50 |
| (O) Stack Height (in) | 70.2500 |
| (P) To Center Of Stack (in) | 8.250 |
| (Q) Rear Smokebox Depth (in) | 15.75 |
| (R) Tube Pull Space (in) | 68 |
| (S) Overall Height (in) | 78.500 |
| Approximate Shipping Weight (lbs) | 5285 |
| Water Capacity-Water (gals) | 298 |
