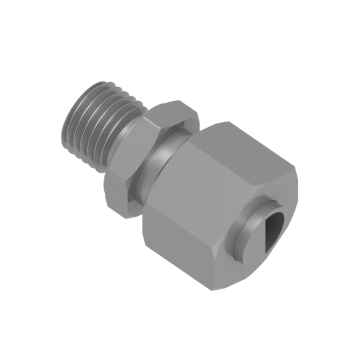

DMC18L-M22-STEL Male Connector Metric Paralled
Model: DMC18L-M22-STEL
| Request Quote | Quantity |
Product Details
| Documentation | |
| H-230TF.pdf | |
| Additional Information | The American Society of Mechanical Engineers, American Petroleum Institute, Germanischer Lioyd, DET Norske Veritas, American Bureau Shipping, Nippon Kaiji Kyokai, Korea Electric Power Industry Code, Alberta Boilers safety Association |
| Material | Carbon Steel |
| Tube O.D. (mm) | 18.00 |
| H (mm) | 32.00 |
| h (mm) | 27.00 |
| K | 27 |
| L (mm) | 31.00 |
| l (mm) | 14.50 |
| l 1 (mm) | 14.00 |
| T R(PT), G(PF) (mm) | M 22 X 1.5 |
| PN (bar) | 250 |
