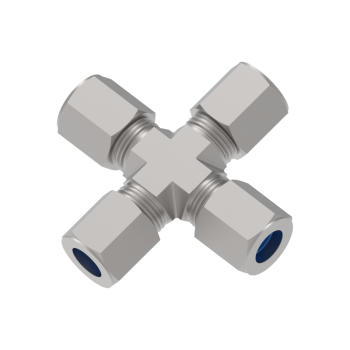

BC-12T-S316 Union Cross
Model: BC-12T-S316
| Request Quote | Quantity |
Product Details
| Documentation | |
| 37-Degree-Flare-Union.pdf | |
| Tube O.D. (in) | 3/4 |
| Dimension D (mm) | 16.7 |
| Material | 316 Stainless Steel |
| Series | BC |
| Dimension l (mm) | 31.2 |
| Width Across Flat (H) (mm) | 31.80 |
| Width Across Flat h (mm) | 27.00 |
| Straight Thread | 1-1/16-12 |
