Conical Spring Washers, Class 2 - JIS B 1252

Model: JWCS205

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

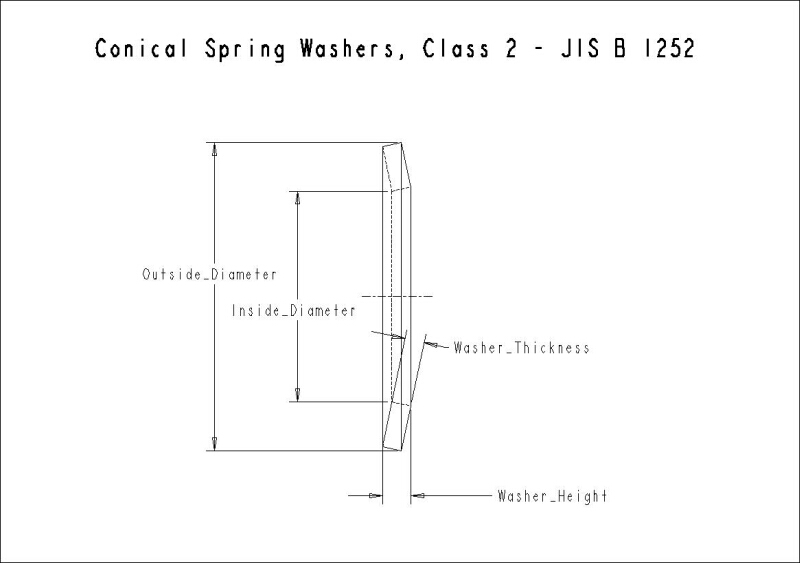

Schematic

Manufacturer Name	PTC
Washer Height (mm)	1.600
Washer State	free
Outside Diameter (mm)	16.500
Inside Diameter (mm)	10.500
Washer Thickness (mm)	1.100
Washer Type	conical spring
Nominal Size	10
