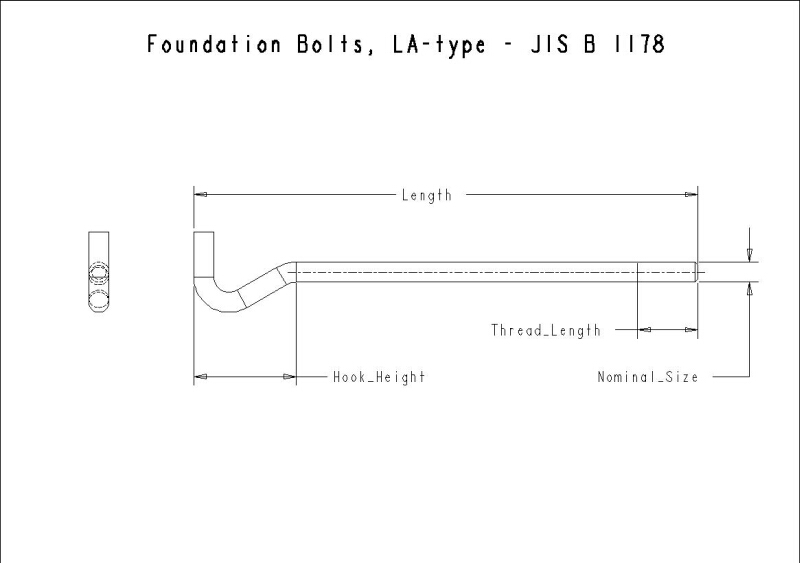

Foundation Bolts, LA-type - JIS B 1178

Model: JFBLA0205

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	PTC
Hook Height (mm)	64.000
Length (mm)	400.000
Hook Width	50
Thread Length (mm)	35.000
Nominal Size	M12
