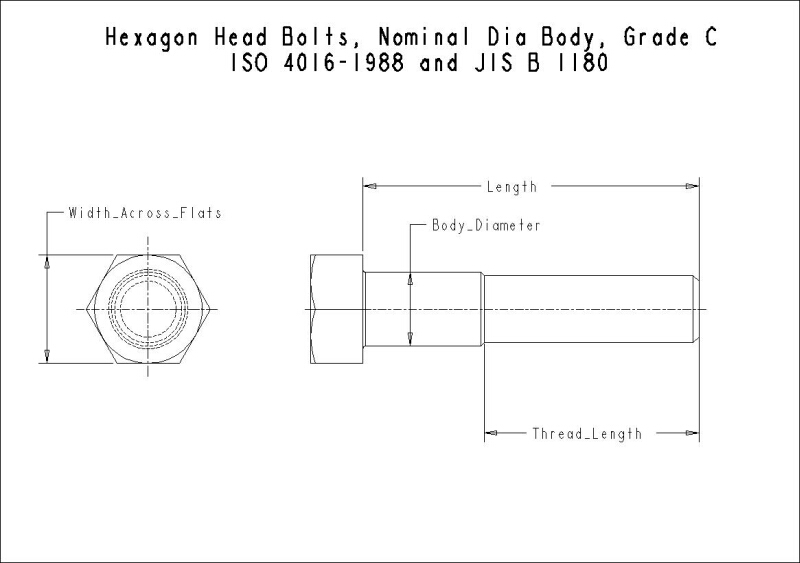

Hexagon Head Bolts, Nominal Dia Body, Grade C - ISO 4016-1988 and JIS B 1180

Model: JHHBC0206

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	PTC
Width Across Flats (mm)	10.000
Length (mm)	60.000
Nominal Diameter Thread Pitch	6X1
Body Diameter (mm)	6.480
Thread Length (mm)	18.000
