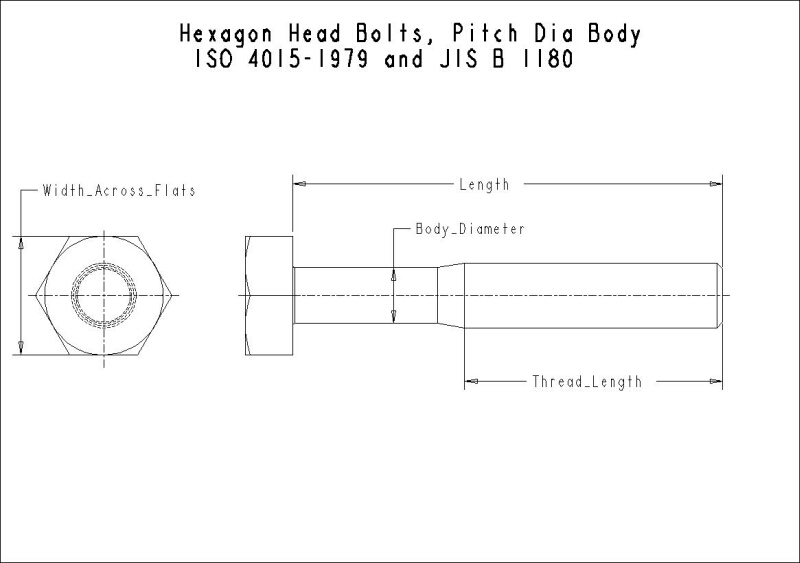

Hexagon Head Bolts, Pitch Dia Body - ISO 4015-1979 and JIS B 1180

Model: JHHBR0103

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	PTC
Width Across Flats (mm)	5.500
Length (mm)	30.000
Nominal Diameter Thread Pitch	3X.5
Body Diameter (mm)	2.600
Thread Length (mm)	12.000
