Hexagon Nuts, Regular, Class 2 - JIS B 1181

Model: JNNR205

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

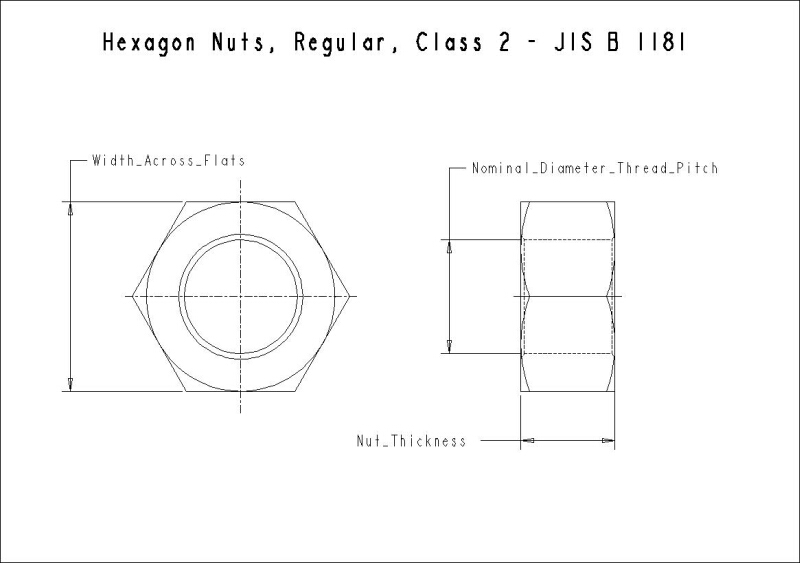

Schematic

Manufacturer Name	PTC
Width Across Flats (mm)	24.000
Nut Thickness (mm)	13.000
Nominal Diameter Thread Pitch	16X2
