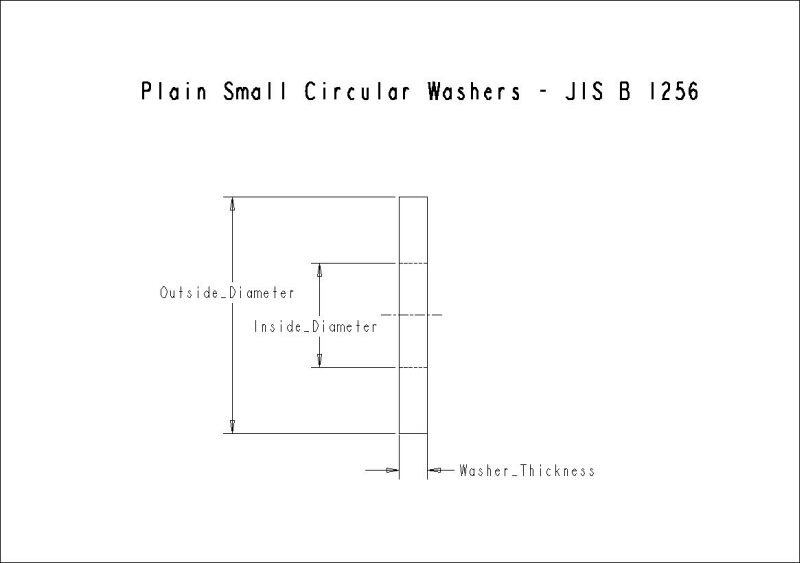

Plain Small Circular Washers - JIS B 1256

Model: JWSMC09

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	PTC
Outside Diameter (mm)	11.500
Inside Diameter (mm)	6.400
Washer Thickness (mm)	1.600
Washer Type	plain small circular
Nominal Size	6
