Self Drilling Small-Size Flat Hd Tapping Screws, Cone&Drill Point - JIS B 1125

Model: JTSDS0206

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

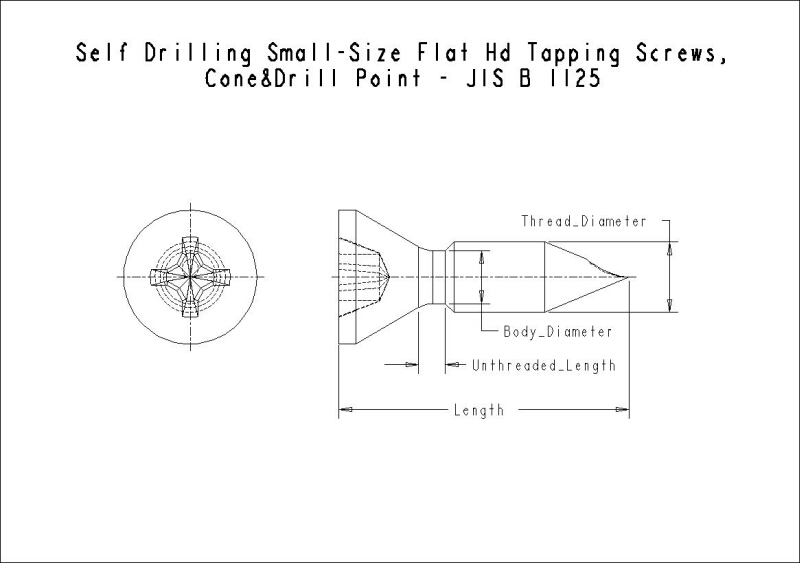

Schematic

Manufacturer Name	PTC
Length (mm)	40.000
Nominal Diameter Thread Pitch	3.5X1.3
End Type	DRILL
Body Diameter (mm)	2.640
Unthreaded length (mm)	1.400
Thread diameter (mm)	3.530
Head Shape	small size flat
