Square Head Set Screws with Cup Point - JIS B 1118

Model: JSQSP0205

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

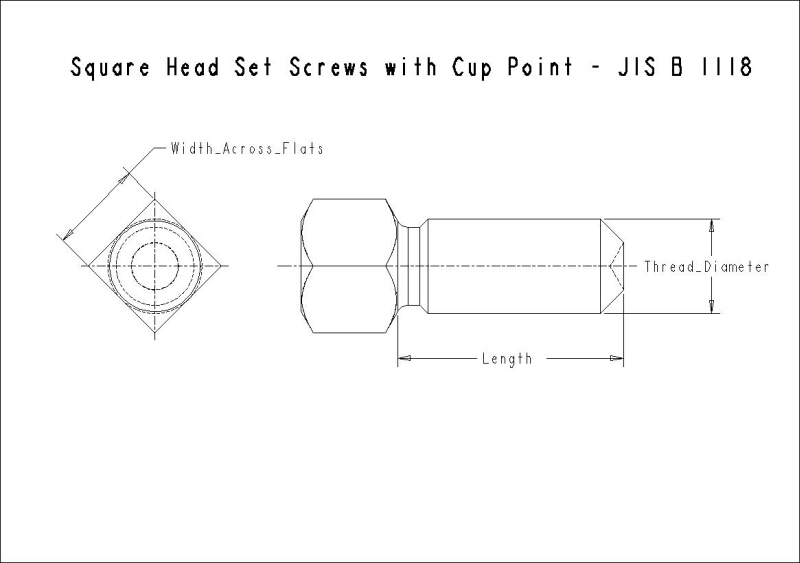

Schematic

Manufacturer Name	PTC
Width Across Flats (mm)	5.000
Length (mm)	20.000
Nominal Diameter Thread Pitch	5X0.8
End Types	cup point
Thread diameter (mm)	5.000
