Basic Internal Retaining Rings, Series 3BM1 -ANSI B27.7-1977(1983)

Model: MBIR0013

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

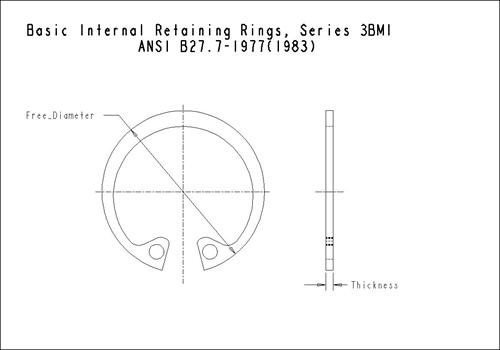

Schematic

Manufacturer Name	PTC
Ring Series Size Number	3BM1-20
Free Diameter (mm)	22.250
Thickness (mm)	0.900
