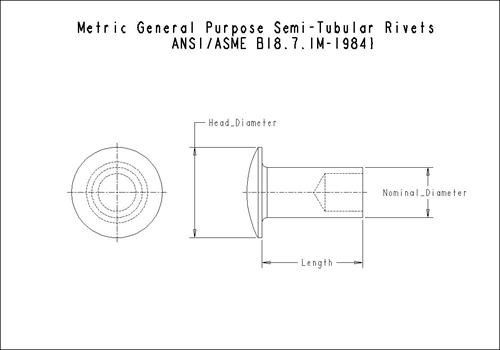

Metric General Purpose Semi-Tubular Rivets-ANSI/ASME B18.7.1M-1984

Model: MSTR01009

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	PTC
Head Diameter (mm)	2.880
Nominal Diameter (mm)	1.600
Length (mm)	6.500
