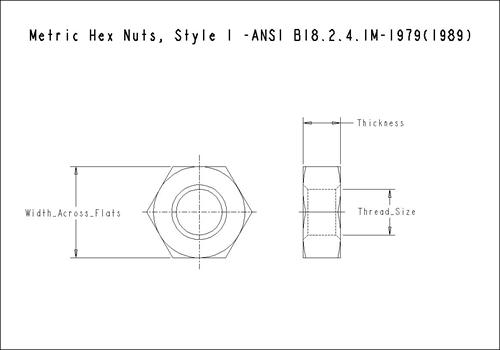

Metric Hex Nuts, Style 1 -ANSI B18.2.4.1M-1979(1989)

Model: MHN104

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	PTC
Thread Size (mm)	3.000
Width Across Flats (mm)	5.500
Thickness (mm)	2.400
Nominal Diameter Thread Pitch	3X0.5
