Metric T-Nuts - ANSI/ASME B5.1M-1985

Model: MTN06

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

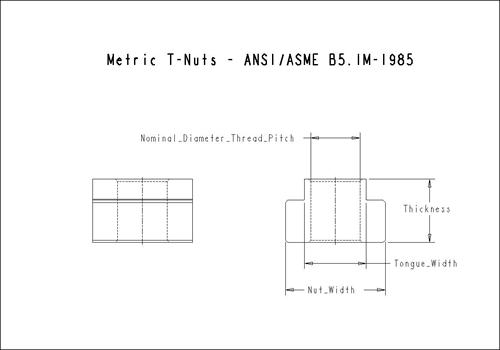

Schematic

Manufacturer Name	PTC
Nut Width (mm)	43.000
Tongue Width (mm)	26.500
Thickness (mm)	27.000
Nominal Diameter Thread Pitch	20
