1.0625-12 UNJF-3B BOSS CONNECTION PLAIN HEXAGON NUT

Model: MS9200-1-12

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

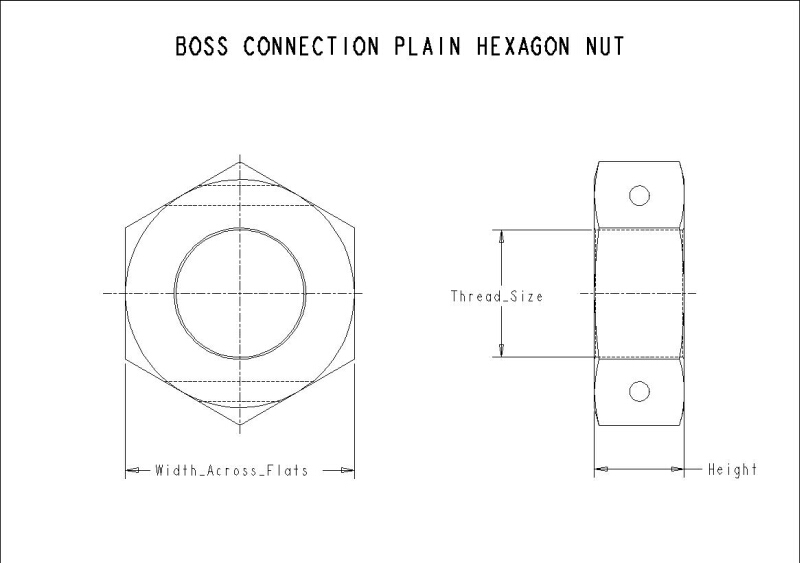

Schematic

Manufacturer Name	MilSpec
Thread Size	1.0625-12_UNJ-3B
Height (in)	0.406
Material	ALUMINUM
Finish Type	ANODIC
Nominal Diameter Thread Pitch	1.0625-12
Thread Size	1.0625-12_UNJ-3B
Weight	3.26_LBS/100
Width Across Flats (in)	1.371
Thread Type	UNJ-3B
