• MILITARY SPECIFICATION
• >
• BOLTS
• >
• HEXAGON HEAD-DOUBLE BOLTS
• >
• DRILLED BOLTS
• >

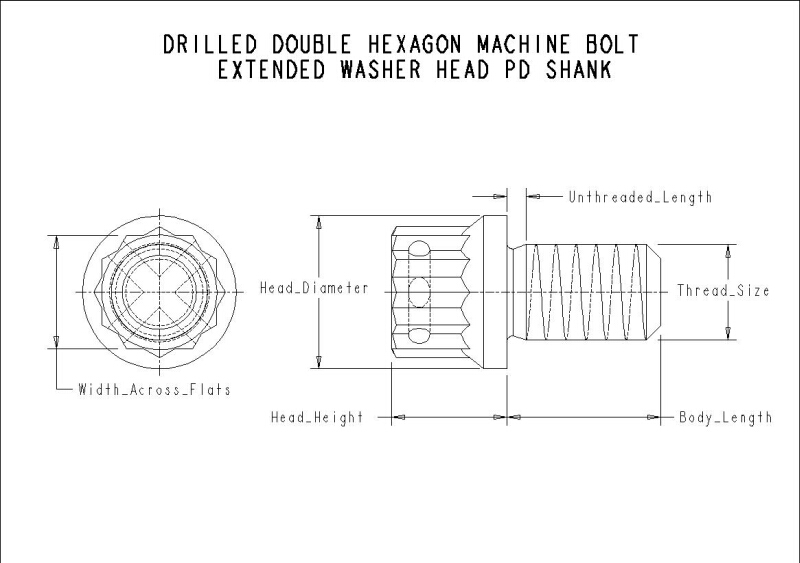

• DRILLED DBL HEX MACHINE BOLT EXT WASHER HEAD PD SHANK
• >
• MS9577-1-04

.375-24 UNJF-3A X 0.625-DRILLED DBL HEX MACHINE BOLT EXT WASHER HEAD PD SHANK

Model: MS9577-1-04

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.375-24_UNJF-3A
Head Height (in)	0.388
Head Diameter (in)	0.562
Unthreaded Length (in)	0.098
Body Length (in)	0.625
Material	CORROSION AND HEAT RESISTANT STEEL AMS 5731
Finish Type	SILVER_PLATE
Nominal Diameter Thread Pitch	.375-24
Thread Size	.375-24_UNJF-3A
Weight	3.42_LBS/100
Width Across Flats (in)	0.438
Thread Type	UNJF-3A
