• MILITARY SPECIFICATION
• >
• SCREW
• >
• MACHINE SCREWS
• >
• DOUBLE HEX SCREWS
• >

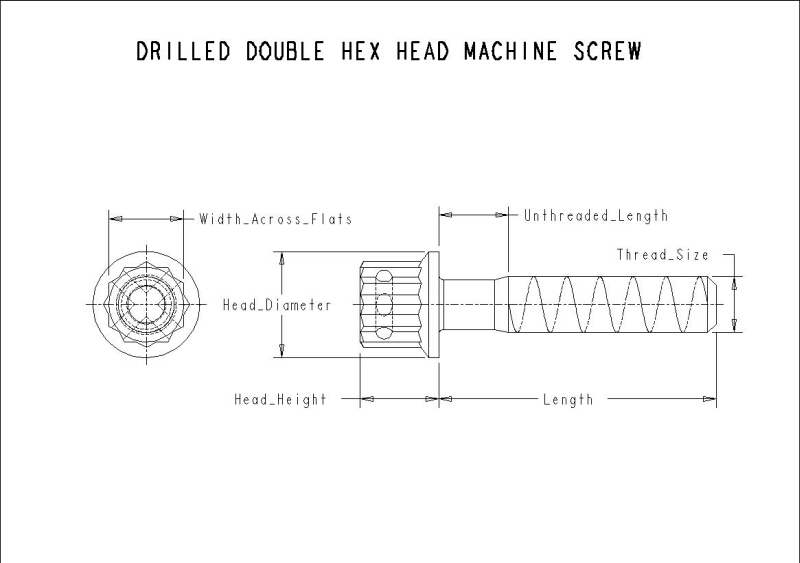

• DRILLED DOUBLE HEX HEAD MACHINE SCREW
• >
• MS9564-1-07

0.164-36 X 0.562 UNJF-3A DRILLED DOUBLE HEX HEAD MACHINE SCREW

Model: MS9564-1-07

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.164-36_UNJF-3A
Length (in)	0.562
Head Height (in)	0.230
Head Diameter (in)	0.312
Unthreaded Length (in)	0.072
Material	CORROSION AND HEAT RESISTANT STEEL
Finish Type	NONE
Nominal Diameter Thread Pitch	.164-36
Thread Size	.164-36_UNJF-3A
Weight	.573_LBS/100
Width Across Flats (in)	0.219
Thread Type	UNJF-3A
