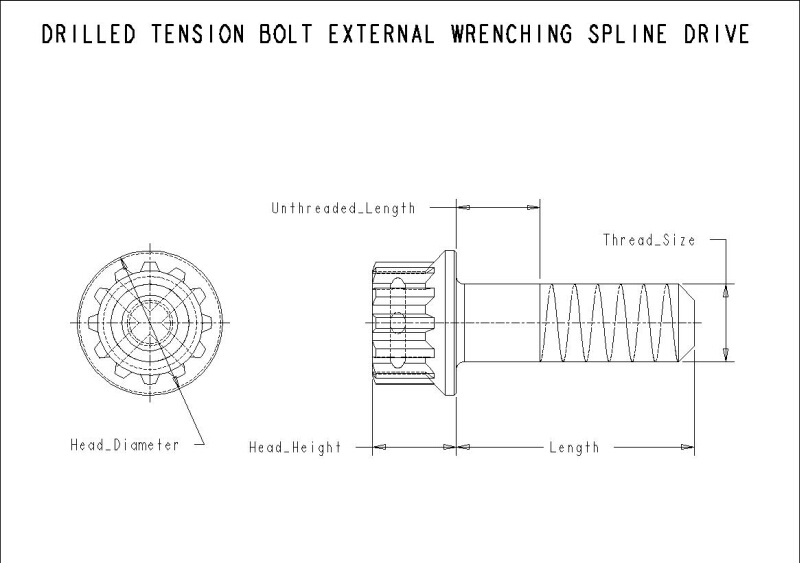

• DRILLED TENSION BOLT EXTERNAL WRENCHING SPLINE DRIVE
• >
• MS21134-2-H03004

.1900-32X0.643 UNJF-3A DRILLED TENSION BOLT EXTERNAL WRENCHING SPLINE DRIVE

Model: MS21134-2-H03004

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.1900-32_UNJF-3A
Center Drill	N
Head Height (in)	0.205
Head Diameter (in)	0.354
Unthreaded Length (in)	0.250
Body Length (in)	0.643
Material	ALLOY STEEL-SEE DOC
Finish Type	CADMIUM_PLATE
Nominal Diameter Thread Pitch	.1900-32
Thread Size	.1900-32_UNJF-3A
Thread Type	UNJF-3A
