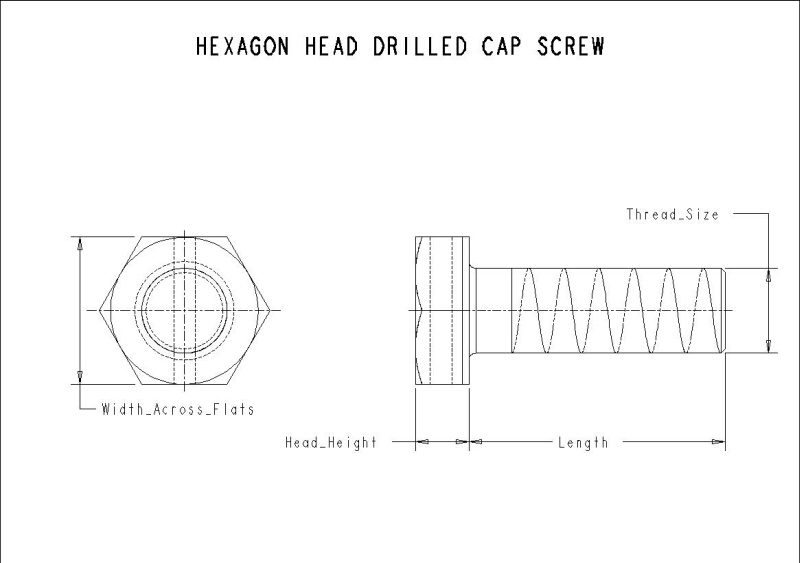

0.250-20 X 0.375 UNC-2A HEXAGON HEAD DRILLED CAP SCREW

Model: MS51095-1-301

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.250-20_UNC-2A
Length (in)	0.375
Head Height (in)	0.157
Material	MEDIUM CARBON STEEL
Finish Type	CADMIUM_PLATED
Nominal Diameter Thread Pitch	.250-20
Thread Size	.250-20_UNC-2A
Width Across Flats (in)	0.433
Thread Type	UNC-2A
