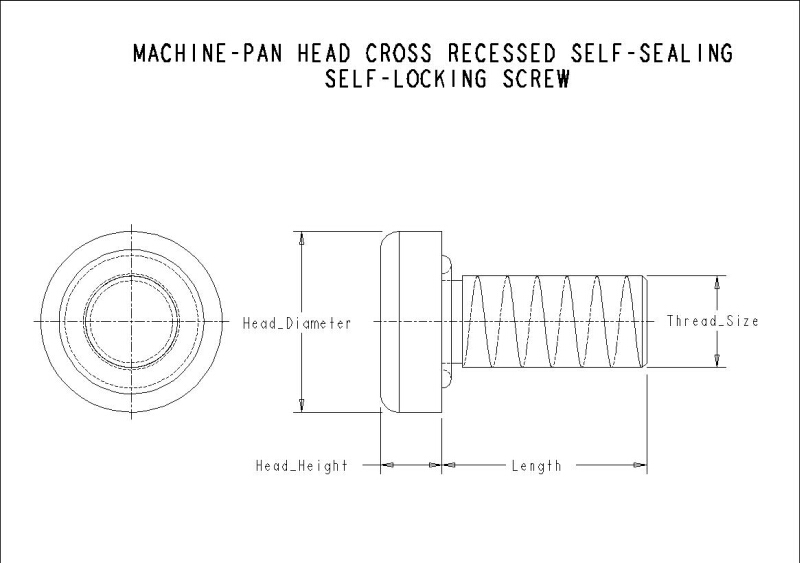

0.138-32 X 0.375 UNC-2A MACHINE-PAN HEAD CROSS RECESSED SELF-SEALING SELF-LOCKIN

Model: MS3212-1-13

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.138-32_UNC-2A
Length (in)	0.375
Head Height (in)	0.092
Head Diameter (in)	0.275
Number Of Threads Per Inch	32
Material	CORROSION-RESISTING STEEL
Finish Type	PASSIVATED
Nominal Diameter Thread Pitch	.138-32
Thread Size	.138-32_UNC-2A
Thread Type	UNC-2A
