• MILITARY SPECIFICATION
• >
• NUTS
• >
• SQUARE NUTS
• >

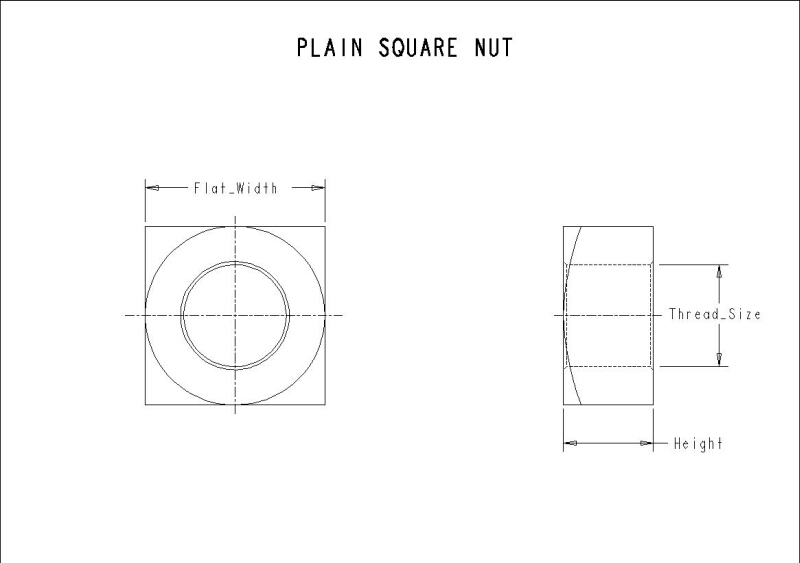

• PLAIN SQUARE NUT
• >
• MS21304-1-2

0.3125-18 UNC-2B PLAIN SQUARE NUT

Model: MS21304-1-2

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.3125-18_UNC-2B
Height (in)	0.266
Body Diameter (in)	0.313
Material	CARBON STEEL
Finish Type	HOT_DIP_ZINC
Nominal Diameter Thread Pitch	.3125-18
Thread Size	.3125-18_UNC-2B
Flat Width (in)	0.563
Thread Type	UNC-2B
