0.3125-24 UNJF-3B SELF-LOCKING EXTENDED WASHER SPLINE NUT

Model: MS14182-1-P05

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

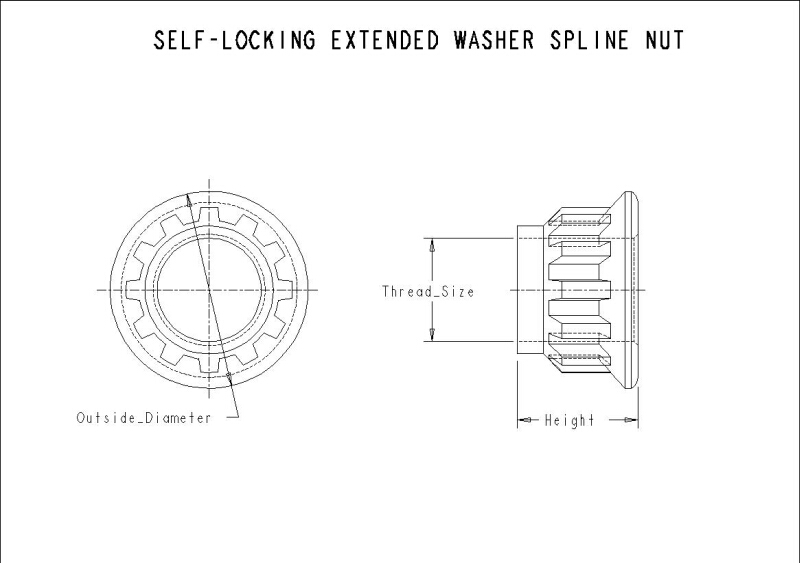

Schematic

Manufacturer Name	MS
Thread Size	.3125-24_UNJF-3B
Height (in)	0.360
Outside Diameter (in)	0.563
Material	NICKEL ALLOY
Finish Type	CADMIUM_PLATED
Nominal Diameter Thread Pitch	.3125-24
Thread Size	.3125-24_UNJF-3B
Weight	0.92_LBS/100
Thread Type	UNJF-3B
