• MS51988-1-12

0.5000-20 UNF-2B SELF-LOCKING FLANGED NUT

Model: MS51988-1-12

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

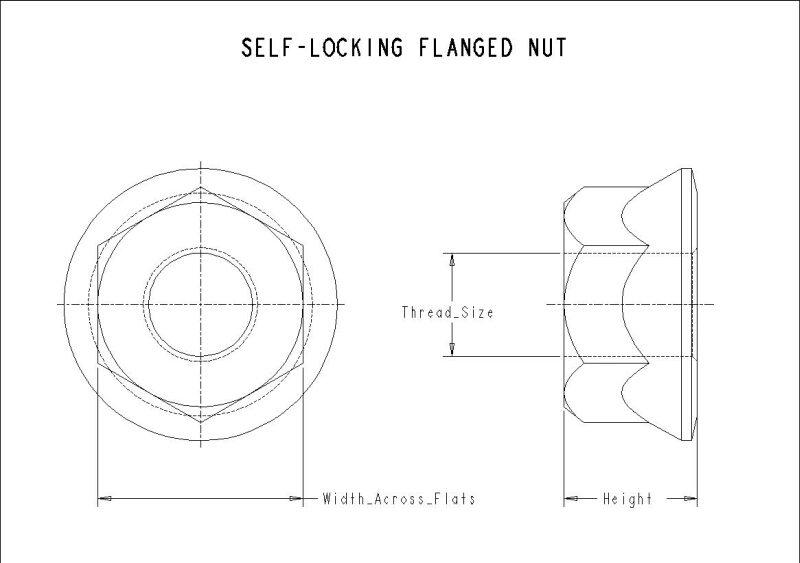

Schematic

Manufacturer Name	MS
Thread Size	0.5000-20_UNF-2B
Height (in)	0.555
Outside Diameter (in)	1.070
Body Diameter (in)	0.500
Material	STEEL GRADE C
Finish Type	CADMIUM_PLATED
Nominal Diameter Thread Pitch	0.5000-20
Thread Size	0.5000-20_UNF-2B
Width Across Flats (in)	0.750
Thread Type	UNF-2B
