0.190-32 X 0.500 UNF-3A SLOTTED HEX HEAD MACHINE SCREW

Model: MS9122-1-03

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

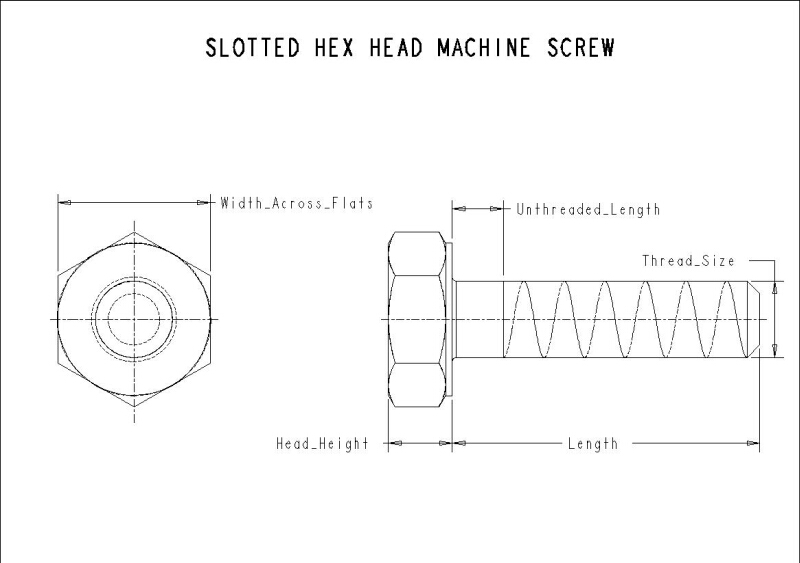

Schematic

Manufacturer Name	MS
Thread Size	.190-32_UNF-3A
Length (in)	0.500
Head Height (in)	0.156
Unthreaded Length (in)	0.063
Material	STEEL
Finish Type	CADMIUM_PLATED
Nominal Diameter Thread Pitch	.190-32
Thread Size	.190-32_UNF-3A
Weight	1.03_LBS/100
Width Across Flats (in)	0.372
Thread Type	UNF-3A
