0.1640-32 UNJC-3B TWO LUG PLATE SELF LOCKING NUT

Model: MS21050-4-L08

Download CAD
View 3D Model View 2D Model

Product Details

Documentation

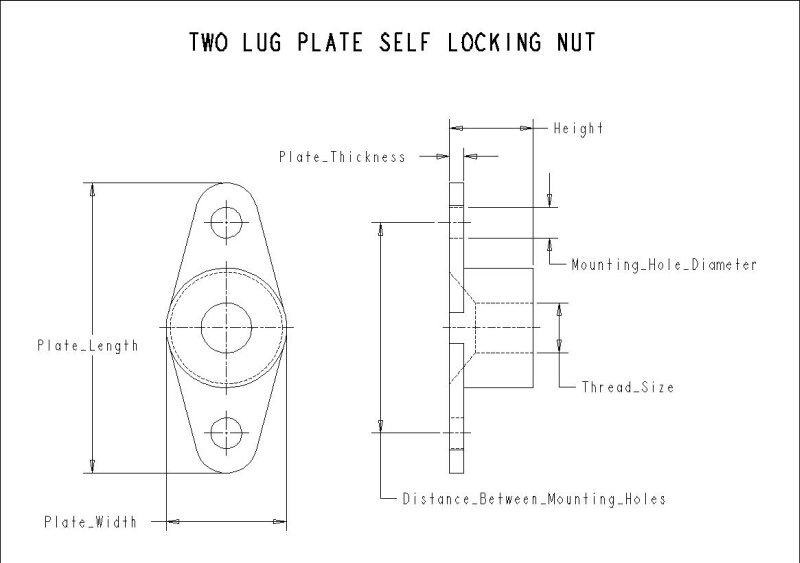

Schematic

Manufacturer Name	MS
Thread Size	.1640-32_UNJC-3B
Height (in)	0.272
Mounting Hole Diameter (in)	0.101
Distance Between Mounting Holes (in)	0.688
Body Diameter (in)	0.164
Material	CORROSION RESISTANT STEEL
Finish Type	SILVER_PLATED
Nominal Diameter Thread Pitch	0.164
Thread Size	.1640-32_UNJC-3B
Weight	.39_LBS/100
Plate Width (in)	0.391
Plate Length (in)	0.948
Plate Thickness (in)	0.047
Thread Type	UNJC-3B
