• MS21062-4-5

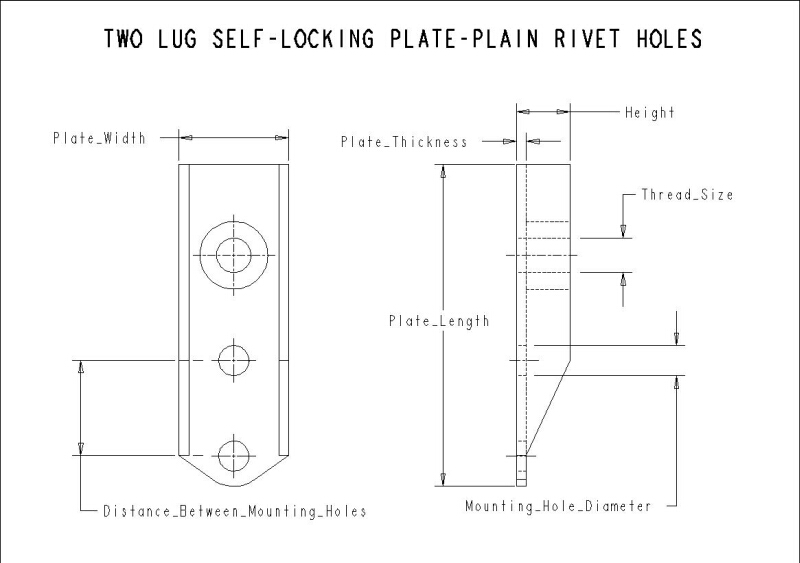

0.3125-24 UNJF-3B TWO LUG SELF-LOCKING PLATE-PLAIN RIVET HOLES

Model: MS21062-4-5

Download CAD
View 3D Model View 2D Model

Product Details

Documentation
Schematic

Manufacturer Name	MS
Thread Size	.3125-24_UNJF-3B
Height (in)	0.328
Mounting Hole Diameter (in)	0.130
Distance Between Mounting Holes (in)	0.312
Body Diameter (in)	0.313
Material	CORROSION RESISTANT STEEL
Finish Type	SILVER_PLATING
Nominal Diameter Thread Pitch	.3125-24
Thread Size	.3125-24_UNJF-3B
Weight	1.44_LBS/100
Plate Width (in)	0.527
Plate Length (in)	1.396
Plate Thickness (in)	0.045
Thread Type	UNJF-3B
