Stainless Drains
>
Drains
>
Floor Sinks
>
SDCFS-Q44080-X21X-06X8

Square 304 Stainless Floor Sink SDCFS-Q44080-X21X-06X8

Model: SDCFS-Q44080-X21X-06X8

Request Quote Quantity

Product Details

Configuration
Options (multi-select)	None Sediment Basket Butterfly Valve Sediment Basket (4" Sch 40 only) Membrane Flange Only Membrane Flange & Clamp Device Membrane Flange & Weep Holes Membrane Flange & Clamp Device & Weep Holes Internal Flange Trap Primer Secure Grate Threaded Outlet Coupling Threaded Outlet Nipple SDc Custom Adjustable Outlet End Cap Outlet Side Outlet Multiple Outlets Catch Basin

Documentation
Demonstration Video

Company	StainlessDrains.com
Email	quote@stainlessdrains.com
Phone	888.785.2345
Product Family	Floor Sink
SDc Part Number	SDCFS-Q44080-X21X-06X8
Type	Square
Material	304 Stainless
Gauge	14 ga

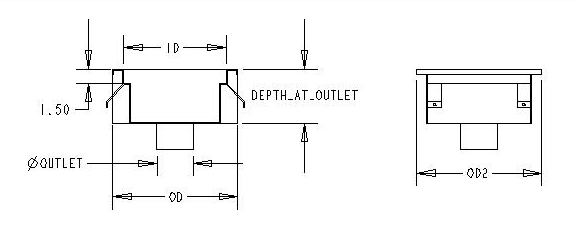

Outside Dia-OD (in.)	8.000
Outside Dia 2-OD2 (in.)	8.000
Inside Dia-ID (in.)	5.500
Outlet (in.)	2.000
Schedule	Sch 10
Depth at Outlet (in.)	6.000
Sump Depth (in.)	4.000
Select Grate	X8-Extra Heavy Duty Subway 3/8" Round Bar x 1/4" Flat Bar
