Single Clamp Type Aluminum A1C Hubs: 6A26-A1C
| Request Quote | Quantity |
Product Details
| Configuration | |
| Bore Size D1 | |
| d1 Keyway Option | |
| Bore Size D2 | |
| d2 Keyway Option | |
| Documentation | |
| Source PDF | Zero-Max_CD_Series_A1C_A4.pdf |
| Product Name | Single Clamp Aluminum A1C Hubs |
| Continuous Torque (in lb) | 469 |
| Peak Torque (in lb) | 938 |
| Torsional Stiffness (in-lb/deg) | 3,100 |
| Torsional Stiffness (Nm/Rad) | 20,100 |
| Maximum Speed (RPM) | 11,500 |
| Weight at Max Bore (lb) | 1.01 |
| Weight at Min Bore (lb) | 1.32 |
| Inertia Max Bore (10⁻³kg-m²) | 0.35 |
| Inertia Min Bore (10⁻³kg-m²) | 0.37 |
| Maximum Misalignments Angular (deg) | 2.0 |
| Maximum Misalignment Parallel (in) | 0.008 |
| Maximum Misalignment Axial (in) | 0.043 |

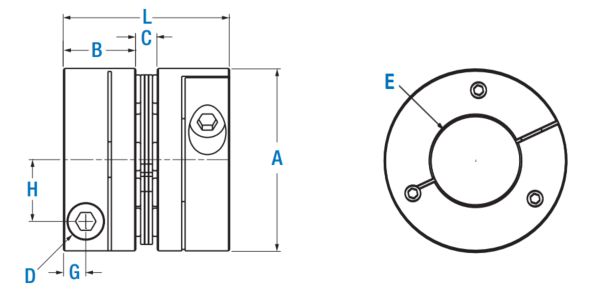

| D (Bolt) | M8 |
| D Torque (Nm) | 32.00 |
| F (in) | 1.000 |
| G (in) | 0.360 |
| H (in) | 0.945 |
| Length L (in) | 2.567 |
| A (in) | 2.736 |
| B (in) | 1.161 |
| C (in) | 0.246 |
| Coupling Size for Drawing References | 26 |
| Material Map | a1c |
