Double Clamp Type Aluminum A1C Hubs: 6P45-A1C
| Request Quote | Quantity |
Product Details
| Configuration | |
| Bore Size D1 | |
| d1 Keyway Option | |
| Bore Size D2 | |
| d2 Keyway Option | |
| Documentation | |
| Source PDF | Zero-Max_CD_Series_A1C_A4.pdf |
| Product Name | Double Clamp Aluminum A1C Hubs |
| Continuous Torque (in lb) | 2,496 |
| Peak Torque (in lb) | 4,992 |
| Torsional Stiffness (in-lb/deg) | 9,317 |
| Torsional Stiffness (Nm/Rad) | 60,324 |
| Maximum Speed (RPM) | 6,700 |
| Weight at Max Bore (lb) | 8.16 |
| Weight at Min Bore (lb) | 10.14 |
| Inertia Max Bore (10⁻³kg-m²) | 8.50 |
| Inertia Min Bore (10⁻³kg-m²) | 9.00 |
| Maximum Misalignments Angular (deg) | 2.0 |
| Maximum Misalignment Parallel (in) | 0.049 |
| Maximum Misalignment Axial (in) | 0.181 |

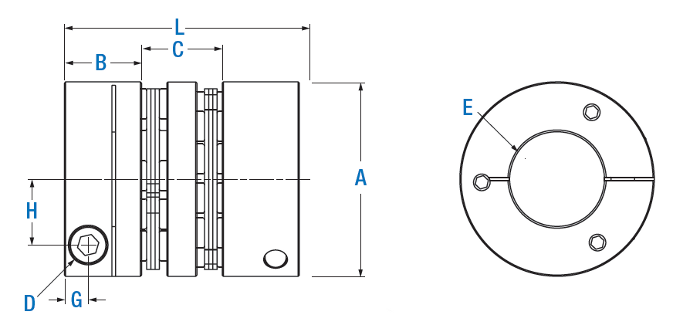

| D (Bolt) | M16 |
| D Torque (Nm) | 245.00 |
| F (in) | 1.811 |
| G (in) | 0.638 |
| H (in) | 1.713 |
| Length L (in) | 6.614 |
| A (in) | 4.843 |
| B (in) | 2.362 |
| C (in) | 1.890 |
| Coupling Size for Drawing References | 45 |
| Material Map | a1c |
