Double Set Screw Type Steel Hubs: 6P26
| Request Quote | Quantity |
Product Details
| Configuration | |
| Bore Size D1 | |
| Bore Size D2 | |
| Documentation | |
| Source PDF | Zero-Max_CD_Couplings.pdf |
| Product Name | Double Set Screw Steel Hub |
| Continuous Rated Torque (in lb) | 475 |
| Peak Rated Torque (in lb) | 950 |
| Torsional Stiffness (in-lb/deg) | 1,500 |
| Torsional Stiffness (Nm/Rad) | 9,712 |
| Maximum Speed A & B Hub (RPM) | 10,500 |
| Misalignments Angular (deg) | 3 |
| Misalignments Parallel (in) | 0.030 |
| Misalignments Axial (in) | 0.086 |
| A Hub Unit Weight At Max Bore (lb) | 1.66 |
| A Hub Unit inertia At Max Bore (lb-in²) | 1.19 |
| B Hub Unit Weight At Max Bore (lb) | 1.66 |
| B Hub Unit inertia At Max Bore (lb-in²) | 1.46 |

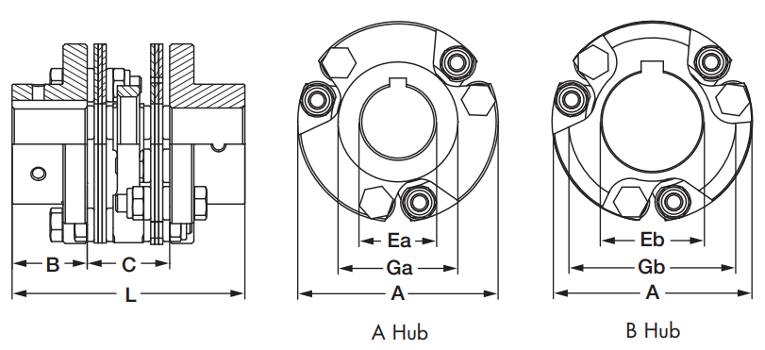

| Diameter A (in) | 2.600 |
| B (in) | 1.060 |
| C (in) | 1.030 |
| Ga A Hub (in) | 1.502 |
| Gb B Hub (in) | 2.160 |
| H (in) | 1.000 |
| Length L (in) | 3.160 |
| X (in) | 0.390 |
| Y (in) | 0.47 |
| Coupling Size for Drawing References | 26 |
| Material Map | always |
