Schmidt Offset Shaft Couplings: L270C
| Request Quote | Quantity |
Product Details
| Configuration | |
| Bore Size D1 | |
| Bore Size D2 | |
| Documentation | |
| Source PDF | Zero-Max_Schmidt.pdf |
| Product Name | Schmidt Offset Shaft Couplings |
| Maximum Torque Capacity (in lb) | 30,000 |
| Performance Factor (P) | 8.787 |
| Practical Speed Limit (RPM) | 1,750 |
| Shaft Displacement S (in) | 3.500 |
| Shaft Displacement (S min) (in) | 0.870 |
| Shaft Displacement (S max) (in) | 3.150 |
| Shaft Displacement (S ml) (in) | 6.050 |
| Shaft Displacement Angular (in) | 0.025 |
| Coupling Weight (lb) | 39.000 |
| Inertia (Wk2) (lb-in²) | 297.000 |

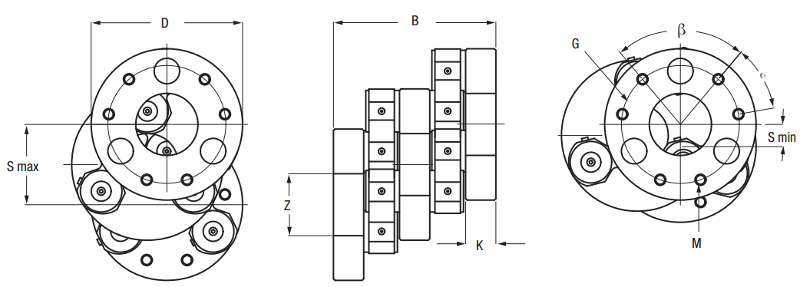

| Coupling D (in) | 7.00 |
| Coupling B ±.032 (in) | 6.37 |
| End Disc Assembly Data Z (in) | 3.50 |
| End Disc Assembly Data K (in) | 1.19 |
| End Disc Assembly Data G (in) | 5.63 |
| End Disc Assembly Data M | 5/8-11 |
| End Disc Assembly Data Number of Bolts | 4 |
| End Disc Assembly Data α (deg) | 90.00 |
| End Disc Assembly Data β (deg) | 90.00 |
| End Disc Assembly Data Bolts Size (in) | 5/8-11x2 |
| Hub Part Number | S6035XX |
| Hub Dimension A (in) | 7.00 |
| Hub Dimension B (in) | 2.50 |
| Hub Dimension C (in) | 4.38 |
| Hub Dimension E (in) | 1.00 |
| Hub Dimension Max Bore (in) | 3.00 |
| Hub Dimension G (in) | 5.63 |
| Hub Dimension Fastener Quantity | 4 |
| Hub Dimension Fastener Size | 5/8-11x2 |
| Hub Dimension α | 90° |
| Hub Dimension β | 90° |
| Hub Dimension Wt. (lb) | 17.2 |
