ETP Classic Stainless Steel Keyless Shaft Bushings: ETP-R25
| Request Quote | Quantity |
Product Details
| Documentation | |
| Source PDF | Zero-Max_ETP_Connections.pdf |
| Product Name | ETP Classic Stainless Steel Keyless Shaft Bushings |
| Transmittable T (ft lb) | 155 |
| Transmittable FA (ft lb) | 3,777 |
| Transmittable FR (ft lb) | 2,383 |
| Polar Moment of Inertia (*10⁻³) (lb-in²) | 1.66 |
| Weight (lb) | 0.46 |
| Hub Bore Tolerance Upper Limit (in) | 1.340 |
| Hub Bore Tolerance Lower Limit (in) | 1.339 |
| Hub Bore Tolerance Grade | H7 |
| Shaft Tolerance Upper Limit (in) | 0.984 |
| Shaft Tolerance Lower Limit (in) | 0.983 |
| Shaft Tolerance Grade | h8 |

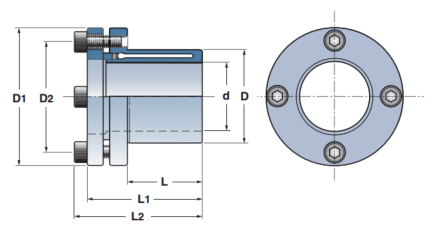

| Dimension (d) (in) | 0.98 |
| Dimension (D) (in) | 1.34 |
| Dimension (D1) (in) | 1.93 |
| Dimension (D2) (in) | 1.57 |
| Dimension (L) (in) | 1.06 |
| Dimension (L1) (in) | 1.69 |
| Dimension (L2) (in) | 1.85 |
| Screws No. | 7 |
| Screws Dim | M5 |
| Screws Tt (ft lb) | 3.30 |
