ETP Techno Keyless Shaft Bushings: ETP-T60
| Request Quote | Quantity |
Product Details
| Documentation | |
| Source PDF | Zero-Max_ETP_Connections.pdf |
| Product Name | ETP Techno Keyless Shaft Bushings |
| Transmittable T (ft lb) | 3,245 |
| Transmittable FA (ft lb) | 26,751 |
| Transmittable FR (ft lb) | 2,698 |
| Polar Moment of Inertia (*10⁻³) (lb-in²) | 118.65 |
| Weight (lb) | 5.53 |
| Bore Tolerance Upper Limit (in) | 2.954 |
| Bore Tolerance Lower Limit (in) | 2.953 |
| Bore Tolerance Grade | H7 |
| Shaft Tolerance Upper Limit (in) | 2.362 |
| Shaft Tolerance Lower Limit (in) | 2.360 |
| Shaft Tolerance Grade | h8 |

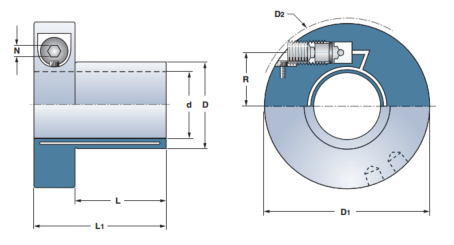

| Dimension (d) (in) | 2.36 |
| Dimension (D) (in) | 2.95 |
| Dimension (D1) (in) | 4.92 |
| Dimension (D2) (in) | 5.20 |
| Dimension (L) (in) | 2.76 |
| Dimension (L1) (in) | 3.74 |
| Screws Dim | M20 |
| Screws R (in) | 1.84 |
| Screws N (in) | 0.39 |
| Screws Tt (ft lb) | 30.00 |
