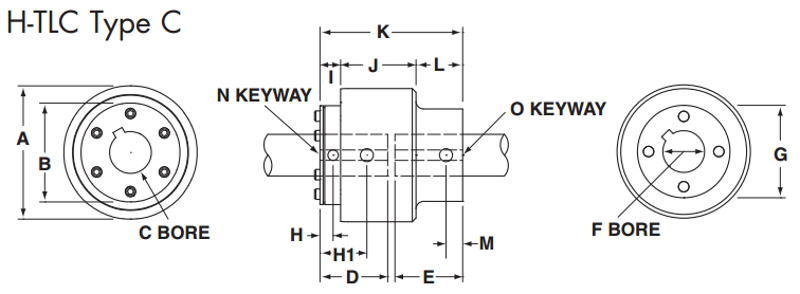

H-TLC Torque Limiters: H-TLC-1000-C
| Request Quote | Quantity |
Product Details
| Configuration | |
| C Bore | |
| F Bore | |
| Documentation | |
| Source PDF | OverloadSafetyCouplingsUScatalog.pdf |
| Product Name | H-TLC Torque Limiters |
| A (in) | 3.200 |
| B (in) | 2.370 |
| D (in) | 2.230 |
| E (in) | 1.210 |
| G (in) | 2.220 |
| H (in) | 0.315 |
| H1 (in) | 1.625 |
| I (in) | 0.520 |
| J (in) | 1.810 |
| K (in) | 3.450 |
| L (in) | 0.626 |
| M (in) | 0.400 |
| Q (in) | 1.687 |
| R (in) | 5/1618 x 3/4 DP |
| X (in) | 4.040 |
| Z (in) | 3.270 |
| Z1 (in) | 3.110 |
| Coupling Size for Drawing References | 1000 |
| Material Map | always |
